Lilygo TTGO T-Camera ESP32 OV2640 0.96 OLED (opt. Fisheye Lens)

Beschreibung

Spezifikationen

Master Chip: esp32 dual-core

Protocol: Wi-Fi 802.11 b/g/n & Bluetooth 4.2 BLE & BR/EDR
Flash: 4MBytes
PSRAM: 8MBytes
Display chip: SSD1306 I2C
Display type: OLED
Display resolution: 128×64
PIR: AS312
Uart Chip: CP2104/CH9102F

Fish-eye with Mic Uart Chip：CH9102F QFN24

Charging chip: IP5306 I2C（Mic T-Camera without I2C)
Camera: OV2640
Camera Resolution: 2Megapixel

Github

https://github.com/Xinyuan-LilyGo/esp32-face-recognition

https://github.com/Xinyuan-LilyGO/LilyGo-Camera-Series

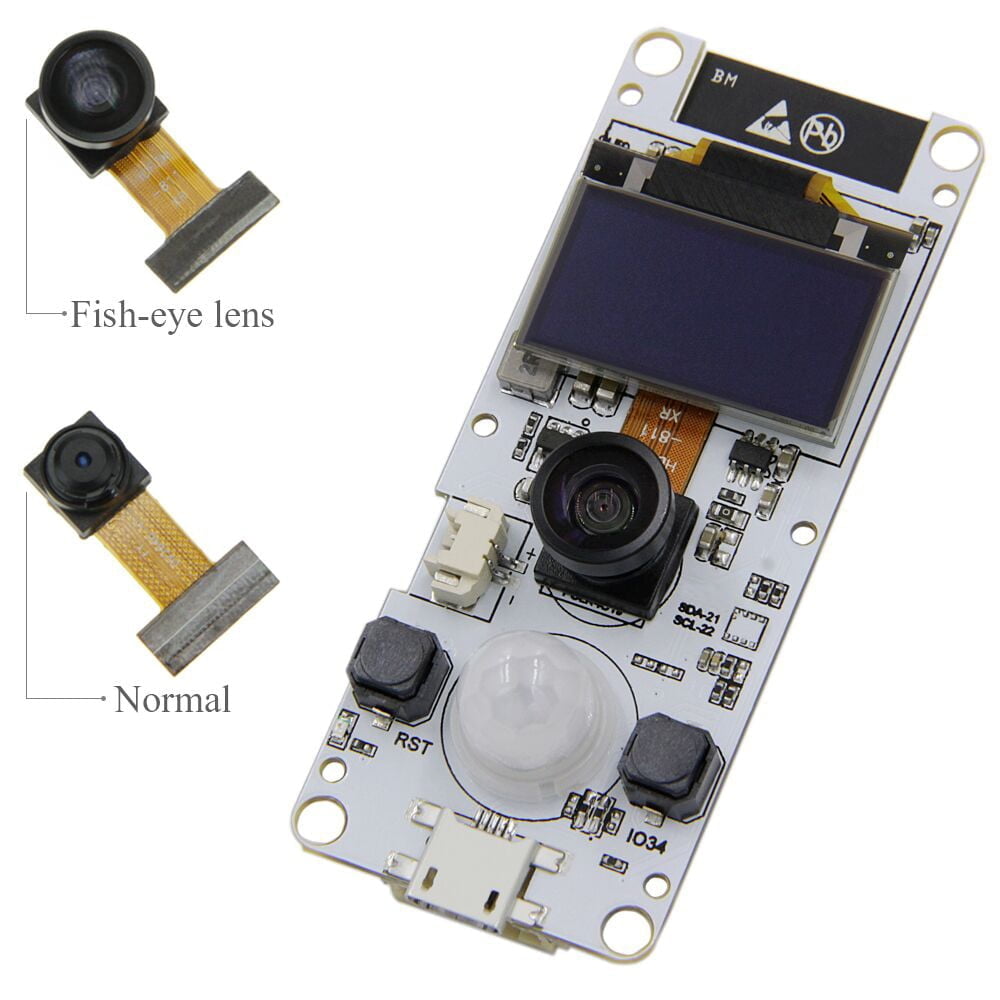

The difference between Fish-eye lens and normal:

Pinout

Lieferumfang Modul

• 1x Modul
• 1x Batteriekabel
